Model

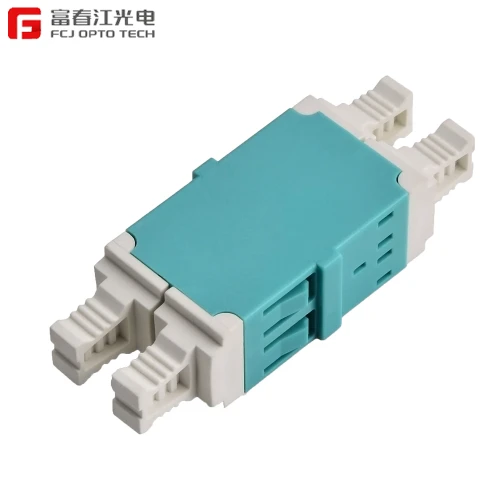

LC DX adapter

Item specifics

Model NO.
LC Adapter
Certification
RoHS, UL, CE, ISO9001, VDE, CCC
Transport Package
Plastic Bag or as Order
Specification
FTTH FTTB FTTX Network
Origin
RPC

Review

Description

Description

Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FCJ OPTO supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.

Product Parameters

Connector Type

LC-LC

Body Style

Simplex

Polish Type

UPC/APC

Fiber Mode

Single Mode/Multi Mode

Insertion Loss

≤0.2dB

Durability

1000 times

Mounting Type

Reduced Flanged

Alignment Sleeve Material

Ceramic

Flammability Rate

UL94-V0

Working Temperature

-25~70°C
